SALIENT FEATURES: -

• ­Height: - 760 Mm. Approx.

                            + 50mm (Adjustable)

• ­Length: - 2440 Mm Approx. (8 Feet.)
• Width : - 915 Mm Total S.S-304 Top Width. (Top Of 16 Gauges S.S 304).

                     305 Mm (12 Inch) PVC Coated Rubber Endless Belt To Convey The Product.

                     305 Mm To Both Sides For Use Part.

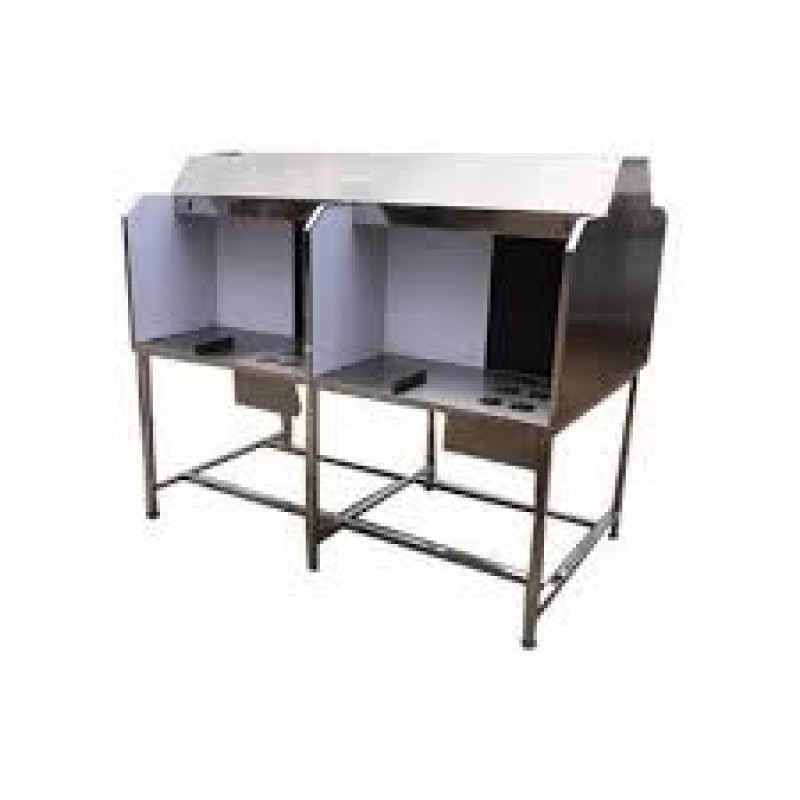

• S. Booth With Necessary Lights (Total 4 Seated System (2 X 2) Black & White Both Screen Per Seat).
• Imported C. Variable Drive.
• ­Drive Unit (with Alignment) To Drive The Conveying Belt.
• ­Structure Of S.S –304, 304-gauge Tubular Structure.
• ­Top Of S.S.304.
• Supporting Guide With Divider System.
• Supporting Rollers Of M.S Hard Chrome Plated.

OPERATION: -

Inspection Table Is Equipment Consisting Of Two Or Three (Double Side Sitting Arrangement) Tracks Conveyor With A Hood With Lighting Arrangement And Visual Inspection Background Of Alternate Black & White Color

The Central Conveyor Belt Brings The Bottle From The Capping / Washing Machine Conveyor. The Bottles Are Automatically Bifurcated On The Two Adjoining Conveyor Belts And Further On The Side Tables For Operator’s Sitting On Either Side Of The Table. The Operator In Turn Picks Up The Bottles And Visually Inspects The Bottles In The Alternate White & Black Background To Check For Any Partial In The Liquid Filled, Sealed And Breakage Of Bottles. After Inspection The Bottles Are Placed In The Central Track Which Is Transfer For Labeling.

ELECTRIC LOAD: -

(1) Electrical Supply              : Single Phase + Neutral + Earthing.

(2) Electrical Load                 : 0.5 KW.
